Know when something moves that shouldn’t.
Aztrax detects unexpected movement of industrial equipment and assets inside defined sites, yards and project areas — without putting GPS and a SIM on everything.
FIG 1.0 — FIELD SIMULATION · ASSET 018 RESTING IN CONTRACTOR YARD
The problem isn’t always knowing where an asset is.
It’s knowing when it moves.

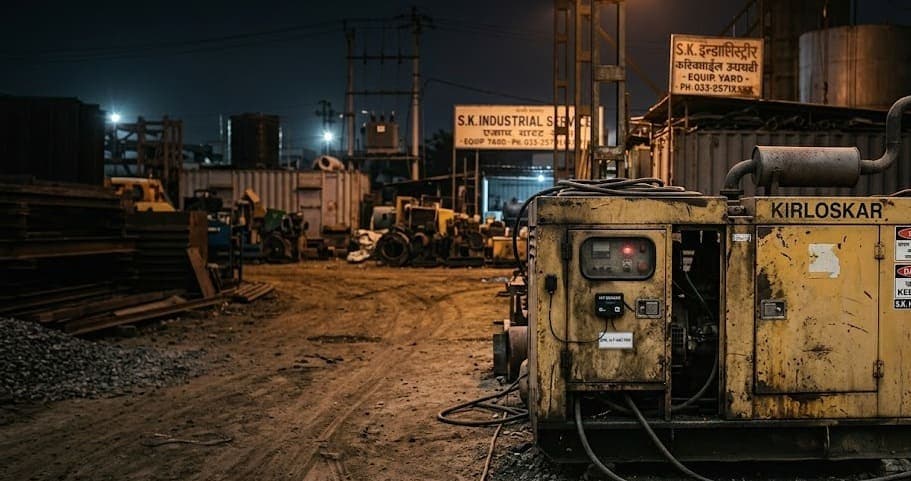

PHOTO 02 — NIGHT OPERATIONS · UNATTENDED ASSETS ACROSS PERIMETERS

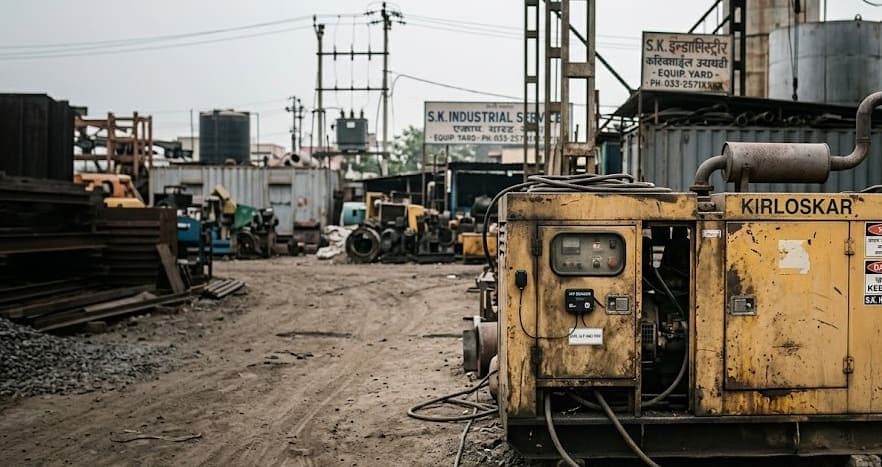

A generator sits in a contractor yard.
A welding machine stays inside a fabrication area.
A cable reel remains in the material yard.
Nobody expects them to move tonight.
But at 02:17, one of them does.
Who knows?
Not every asset needs GPS.
If an asset normally stays inside a plant, yard or project site, you may not need continuous coordinates.
You need to know when it moves.
GPS
“Where is it?”
Continuous global coordinates. Engineered for moving vehicles on open roads. Requires clear line of sight to satellites, dedicated cellular modem, active SIM subscription, and high power consumption.
RFID & Barcode
“Did it pass here?”
Point-in-time identification. Scanned at stationary gates, portals, or during manual audits. Completely blind to displacement happening between checkpoints or within open project yards.
AZTRAX
“Did it move?”
Movement intelligence across a defined site. A compact low-power sensor detects vibration and displacement immediately, communicating through a shared site gateway. No SIM per asset. Multi-year battery life.
Three things that shouldn’t move unnoticed.
Aztrax is intentionally not a universal tracking platform for consumer items. We focus on stationary and semi-stationary capital equipment where unexpected displacement creates serious disruption.
Diesel Generator Sets
“A DG set leaves the yard after hours.”
High-capacity generators are routinely parked in laydown areas, contractor compounds, and remote corners of refinery expansion sites. They are heavy, high-value, and assumed to be immobile without cranes or towing trailers. At night, unauthorized hitching happens fast.
Welding & Portable Inverters
“A contractor’s welding machine leaves its assigned area.”
Industrial welding machines, pipe-bevelling tools, and mobile compressors migrate constantly between contractors and sub-contractors on large EPC projects. They frequently “disappear” during shift handovers or get loaded into unauthorized pickup beds.
High-Tension Cable Reels
“A cable reel moves out of the designated material yard.”
Heavy wooden and steel reels containing expensive copper and high-voltage power cables sit in open material storage yards. Because they are heavy, they are left unprotected by indoor warehousing. Rolling or lifting a drum onto a flatbed takes less than ten minutes.
A small device. A site gateway. One clear event.
The system is intentionally simple. We do not stream heavy coordinate data across satellite constellations. An asset moves; the tag transmits; the site gateway reports; the responsible person acts.
Asset
Stationary or semi-stationary equipment inside a defined yard or plant boundary.
Aztrax Tag
Rugged enclosure bolted or magnetic-mounted. 3-axis accelerometer and vibration filter.
Sub-GHz Radio
Long-range sub-GHz packets penetrate steel structures, containers, and concrete bays.
Site Gateway
Mains or solar powered. Covers the plant or yard zone. Listens continuously for registered tags.
Aztrax Cloud
Eliminates false vibration noise. Validates whether movement violates site rules or schedules.
Immediate Alert
SMS, WhatsApp, webhook or guard-post relay delivered within seconds of physical movement.
PHOTO 03 — CLOSE-UP FIELD MOUNTING ON HEAVY EQUIPMENT STEELWORK
Bolted to the machine. Listened to by the site.
Unlike consumer AirTags (which require nearby iPhones) or vehicle GPS units (which require 12V automotive power and continuous 4G SIM plans), the Aztrax device is self-contained. It wakes up on physical motion, communicates over license-free industrial sub-GHz frequencies, and sleeps the rest of the time.
Why put GPS on everything?
One gateway can serve many assets.
GPS Tracker on Every Asset
Designed for highway trucks and delivery fleets. Duplicates costly RF subsystems and recurring cellular telecom infrastructure onto every single physical tool.
Aztrax Movement Architecture
Separates motion detection from external communication. Deploy light, robust sensors on assets, and let one shared gateway handle site connectivity.
Start with one area. Prove it.
We’ll monitor movement, coverage, false alerts and operational value before you decide whether to scale.
What the 30-Day Pilot Proves
This is not a marketing trial or free giveaway. It is an engineering validation protocol designed for Site Directors, Maintenance Heads, and Plant Managers.
- 01RF Signal Propagation: Confirms sub-GHz packet delivery through your exact layout of steel structures and containers.
- 02False Alert Filtering: Verifies that routine nearby wind, engine vibration, or shift noise does not trigger false movement alarms.
- 03Event Latency: Proves that unexpected physical movement triggers notifications to responsible personnel in under 5 seconds.
- 04Site Team Workflow: Tests whether security desk and shift leads can act on alerts without technical friction.
Built for real industrial conditions.
We do not manufacture glossy consumer gadgets or claim enterprise scale before testing in dust, vibration, and monsoon rains. These are genuine field records from active prototype evaluations.
Mounting & accelerometer calibration
Rigid mechanical attachment tested directly onto welded structural equipment frames. Vibration dampening algorithms isolate continuous engine oscillation from unauthorized physical towing or lifting displacement.
Sub-GHz propagation across heavy steel
Site gateway tested in high-interference industrial environments containing shipping containers, stacked pipe racks, and structural steel bays. Transmits over sub-GHz frequencies without requiring line-of-sight optical paths.
Clean telemetry log without coordinate noise
Real movement telemetry captured in the Aztrax event log. Rather than dumping continuous raw GPS coordinates, the system records the exact moment of displacement, duration of vibration, and gateway packet strength.
Have something valuable that shouldn’t move unnoticed?
Tell us what it is, where it normally stays and what happens when it moves.
10 assets · 1 gateway · 30 days
